Wednesday 25 August, 2010, 04:10 - Pirate/ClandestineBack in October 2009, Wireless Waffle brought to your attention the HF (short-wave) monitoring data produced on a quarterly basis by the ITU. Within these reports were a number of short-wave pirate stations and the original list of stations brought a lot of interest from these stations, both to see who had been 'caught' and to see how close the ITU had gotten to identifying their exact location. Based on the e-mails that were received following the article, it seems like some had hit the nail a little too closely on the head for comfort.
Posted by Administrator
Posted by Administrator
To see how the ITU were getting along, and who had been spotted more recently, a trawl of the montoring reports from January to June 2010 has been conducted and the results presented below. Those stations whose name is shown in CAPITALS were directly identified by the monitoring station concerned. Those in lower case have been identified using the various on-line blogs that report pirate reception.
|Date||Time (UTC)||Freq (kHz)||Monitoring Station||Location||Station|
|03 Feb 10||0600-0600||4025||Berlin, Germany||UK||Laser Hot Hits|
|23 Feb 10||0000-0630||4025||Tarnok, Hungary||Laser Hot Hits|
|23 Feb 10||1830-2359||4025||Tarnok, Hungary||Laser Hot Hits|
|21 Apr 10||1830-2400||4025||Berlin, Germany||Laser Hot Hits|
|02 May 10||0600-2359||4025||Rambouillet, France||0W10 52N01 (Baldock, UK!)||Laser Hot Hits|
|23 May 10||0000-0630||4015||Tarnok, Hungary||Laser Hot Hits|
|16 May 10||1900-2212||5814.7||Rambouillet, France||0E17 52N45 (King's Lynn, UK)||Radio Telstar South|
|16 May 10||0700-0915||5815||Rambouillet, France||6E11 52N30 (Zwolle, Netherlands)||Orion Radio|
|27 Jun 10||0630-0820||5820||Tarnok, Hungary||Orion Radio|
|11 Apr 10||0854-0908||6203||Vienna, Austria||Radio Scotland International|
|09 Feb 10||1048||6210.2||CCRM, Belgium||Netherlands||MISTI RADIO|
|10 Jan 10||1818-2246||6220||El Casar, Spain||11E24 44N27 (Bologna, Italy)||Mystery Radio|
|20 Jan 10||1812-2350||6220||El Casar, Spain||11E24 44N27 (Bologna, Italy)||Mystery Radio|
|30 Jan 10||2002||6220||Baldock, UK||10E0 43N50 (Pisa, Italy)||MYSTERY RADIO|
|28 Feb 10||1100-1137||6220||Vienna, Austria||11E0 44N0 (Prato, Italy)||RADIO MARABU|
|06 Mar 10||1800-2350||6220||El Casar, Spain||11E24 44N27 (Bologna, Italy)||Mystery Radio|
|21 Mar 10||2012-2355||6220||El Casar, Spain||11E24 44N27 (Bologna, Italy)||Mystery Radio|
|06 Apr 10||1852-1917||6220||Vienna, Austria||Italy||MYSTERY RADIO|
|10 Apr 10||1900-2359||6220||El Casar, Spain||11E24 44N27 (Bologna, Italy)||MYSTERY RADIO|
|13 Jun 10||1730-1800||6220||Klagenfurt, Austria||12E0 43N0 (Perugia, Italy)||Mystery Radio|
|14 Jun 10||1700-1900||6220||Rambouillet, France||10E43 43N45 (Prato, Italy)||MISTERY RADIO|
|15 Jun 10||0700-0800||6255||Rambouillet, France||Netherlands||Cool AM|
|19 Jun 10||1530-1645||6374.1||Rambouillet, France||4E13 51N59 (Den Haag, Netherlands)||Radio Baken 16|
|09 Feb 10||0944||6299.2||CCRM, Belgium||RADIO RAINBOW|
|30 Apr 10||1918-2005||6375||Vienna, Austria||Netherlands||Radio Relmus|
|09 Feb 10||0914||6376.6||CCRM, Belgium||Netherlands||RADIO DUTCH WING|
|20 Jun 10||1015-1600||6399.9||Rambouillet, France||1W45 51N21 (Marlborough, UK)||Laser 558 relay|
|11 Mar 10||1815-2200||6870||El Casar, Spain||9E7 45N18 (Milan, Italy)||RADIO PLAYBACK INT|
|11 Apr 10||1500-1700||6959.9||Rambouillet, France||4E39 51N41 (Breda, Netherlands)||Radio Jan Van Gent|
|03 Jan 10||0800||7610||El Casar, Spain||Italy||RADIO AMICA|
|10 Apr 10||0600-2115||7610||Rambouillet, France||12E56 43N55 (Pesaro, Italy)||RADIO AMICA|
|11 Apr 10||0530-0600||7610||Rambouillet, France||12E56 43N55 (Pesaro, Italy)||RADIO AMICA|
|10 Apr 10||1247-1407||7610||Vienna, Austria||11E30 44N30 (Bologna, Italy)||RADIO AMICA|
Please be assured that it is not our intention to name and shame these stations in any way, nor is the Wireless Waffle team opposed to hobby broadcasting (for want of a better word) but we do believe that the stations concerned should be aware that their location may not be as secret as they had hoped.

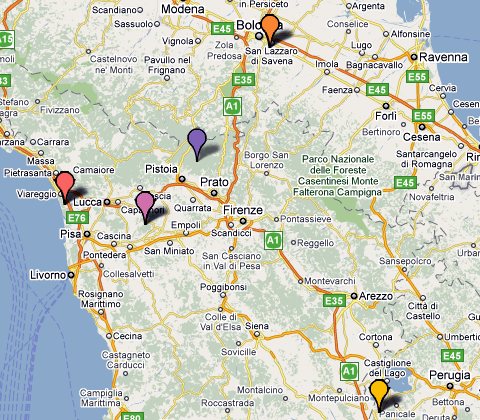

The question of how accurate these measurements are is a good one. The level of concern that seemed to arise from the previous list suggests that they may be relatively good. However, let's take a real example. There are 10 measurements relating to Mystery Radio. Of these, five different locations are logged. The map below shows the position of these loggings.
The distance between the closest of all these measurements is around 20 miles (32 km). It is possible that this is the best resolution that some of the monitoring stations can achieve. At this kind of resolution, a ground-based receiver would be unlikely to hear the transmitter. Ground wave signals would not travel this far, and it is the ground wave signal which is required for a person on the ground to be able to 'home in' on the location of a transmitter.
So should pirate radio stations be concerned about being tracked down as a result of the work of the ITU. From the evidence above, it seems that this data alone is probably insufficient to allow a station's location to be identified in one simple move. However, if you are running one of these stations and the location which is shown is more accurate than those for Mystery Radio - and certainly if its within 5 km at which point a man on the ground would be able to track you down - perhaps it's time to up sticks and find a new site!
